SPEC'S:

• Dimensions: W: 90mm (3-5/8") H : 135mm (incl. connector) L: 270mm (10-5/8") - body, 350mm (~13-7/8")
• Power: 2.2 kW (3 HP)
• Voltage: 220V/380V 3 Phase (Inverter Output Voltage)
• Current 9.7A/5.6A
• Frequency: 0~400 Hz
• Speed: 0~24000 RPM stepless.
• Manufacturer Recommended Working speed: 8000-24000 RPM
• ER20 collet
• Grease Lubrication
• Runout off: less than 0.02mm (0.001")
• Air Cooled
• Weight: 8.5kg (18lbs)
• Includes 1-Year Warranty against manufactured defects

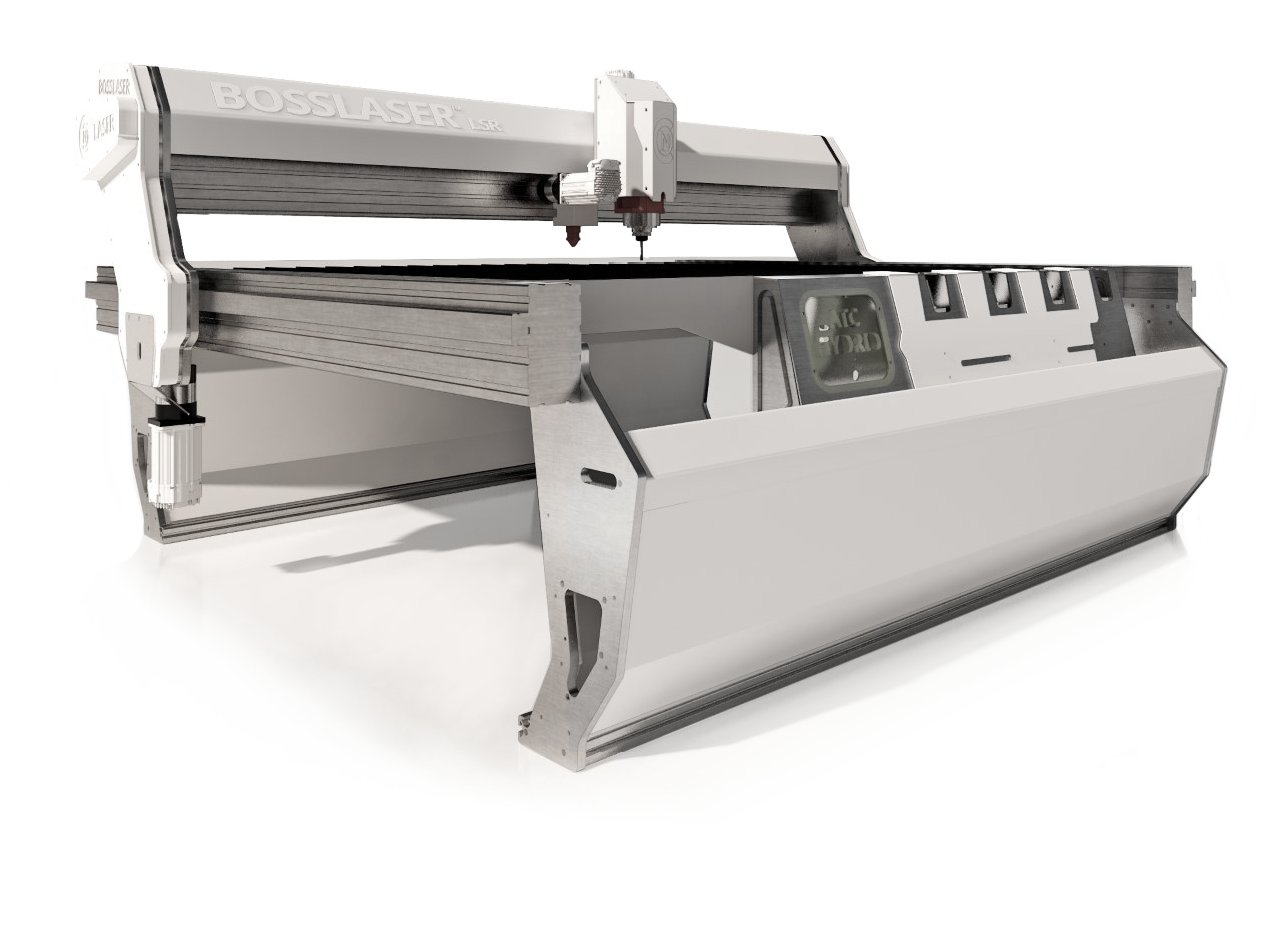

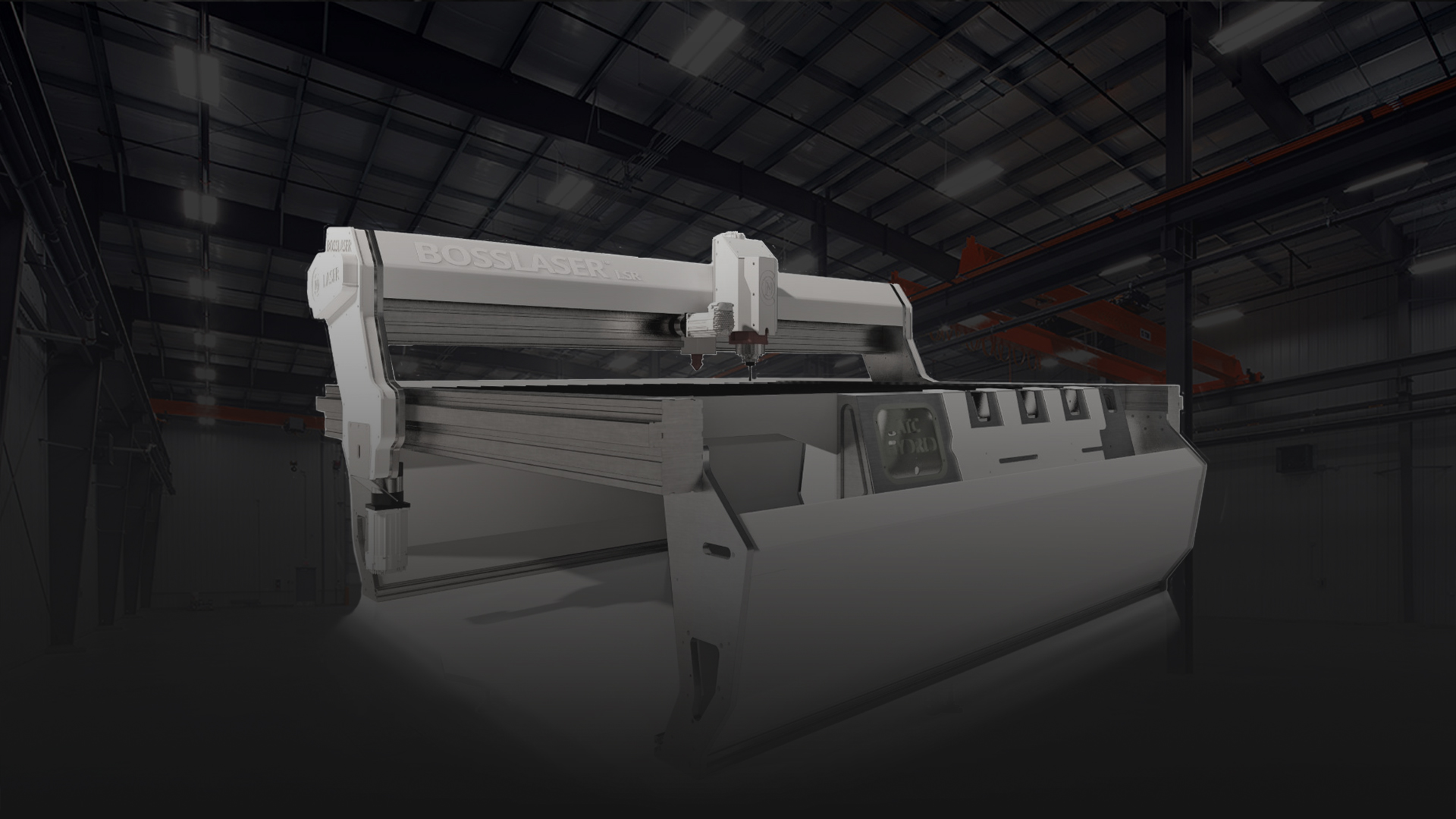

Boss' LSR Hybrid includes a 4x4' work area with custom options available.  We have built platforms from 2X4' to 6X20' for job specific applications.  Give us a call - we're here to help:  407.878.0880.

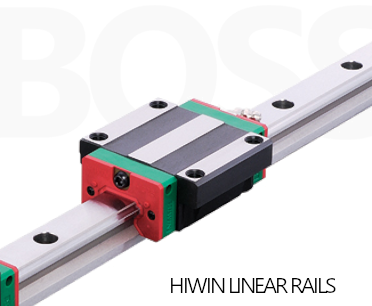

X&Y Axes: Servos w/ Helical rack & pinion rails and precision linear guide rails & bearing blocks

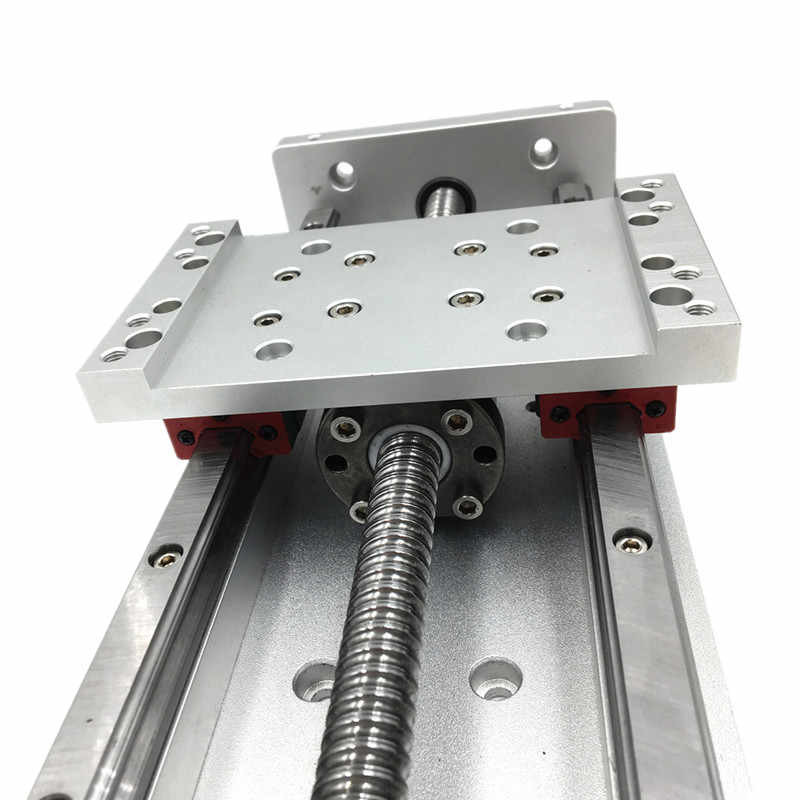

U&Z Axes: Servos w/ Ball Screw drive between Dual guide Rails & bearing blocks

Mobile workstation includes All-In-One HP 24" Multi-Touch, Intel Core I-5 PC.  PC comes pre loaded with Hybrid 3D CAM by CADlink.   Stand includes locking casters, keyboard and mouse pad, and machine Emergency Stop button.

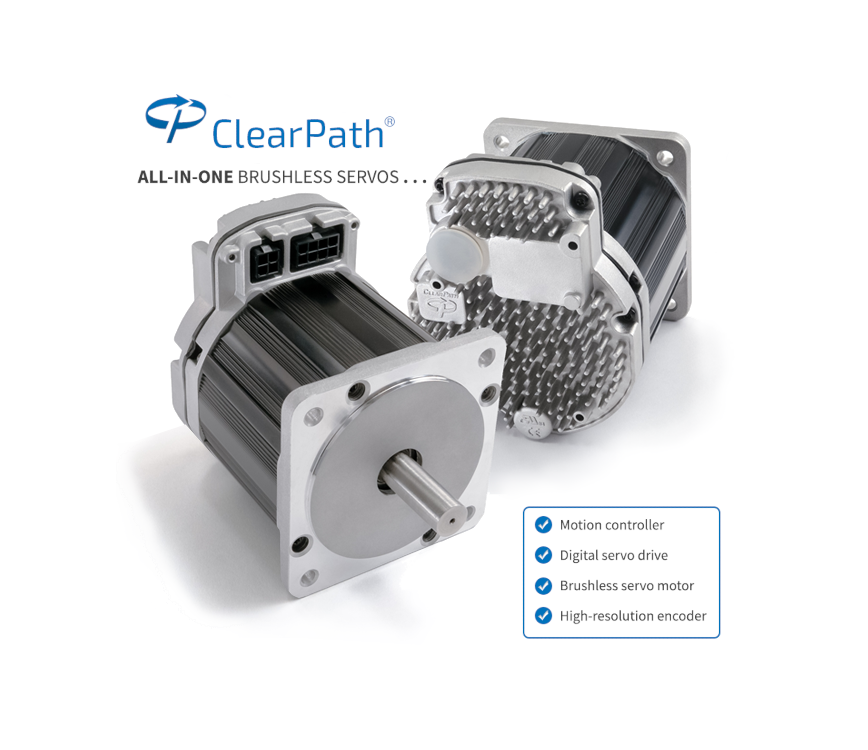

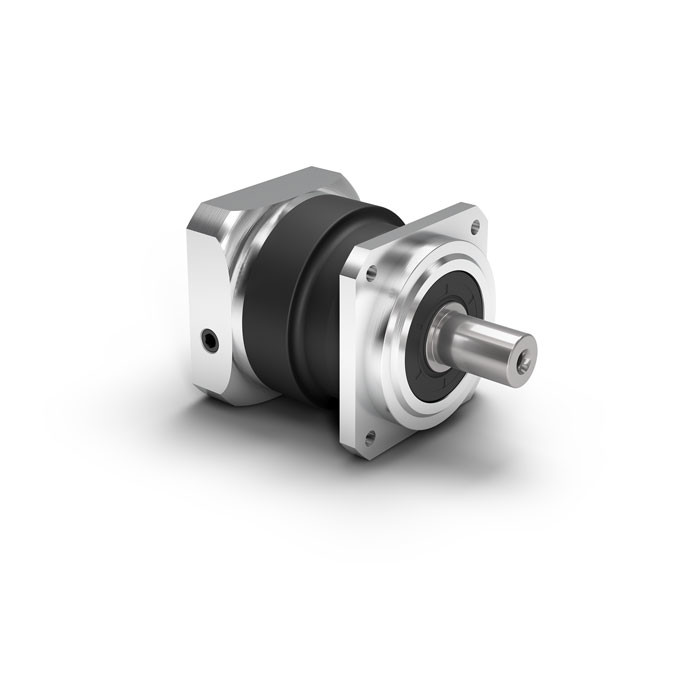

We have ClearPath Teknic^TM motors integrated with inline Planetary gearboxes.  The tight tolerances and low backlash of planetary gearboxes (along with high torsional stiffness) help to mitigate backlash to boost the precision of the gear-motor assembly.

Teknik's Rugged ClearPath All-in-One Servo Motors include:

• Motion controller
• Brushless, permanent magnet motor
• High-Resolution encoder
• Digital Servo drive electronics
• Integrated to high torque, low backlash Planetary Gearboxes
• 3-Year Warranty

The LSR Hybrid now includes BOSS' IPC^TM Industrial Post Processor and CADlinks All-In-One Hybrid 3D CAM^TM for a complete, all-in-one, turn-key interface for multi-tool control and design.

As we continue to design, engineer, and assemble our laser systems here at Boss we have expanded our facilities to 43,000 sq. ft.  We continue to build in-house as well.  We strive to improve our quality output by upholding our IS0-9001:2015 certifcation. We are also members of BBB, D&B, System for Award Management (SAM), and Laser Institute of America (LIA).  See a laser Live! Come and visit us in Sanford, FL just 20 min North of Orlando.

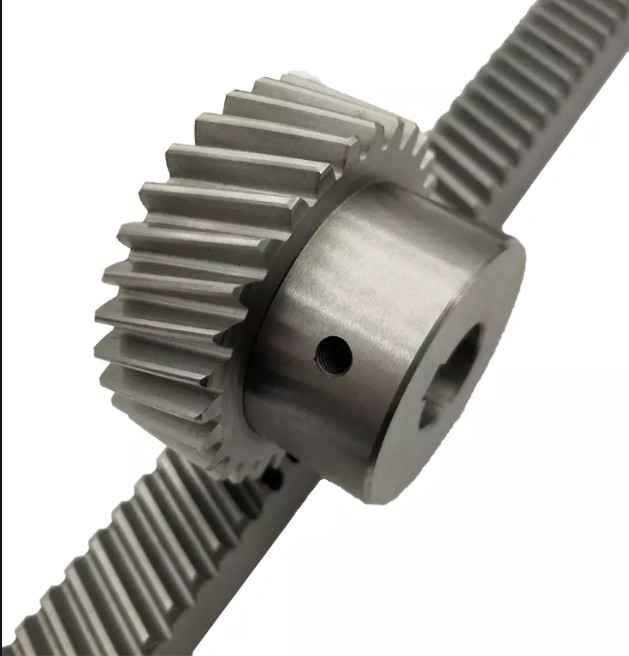

BOSS' LSR HYBRID high precision helical gear racks.  With minimal pitch error over the entire travel length the high precision parallelism allows for drives with extremely low backlash without the need for preloading.

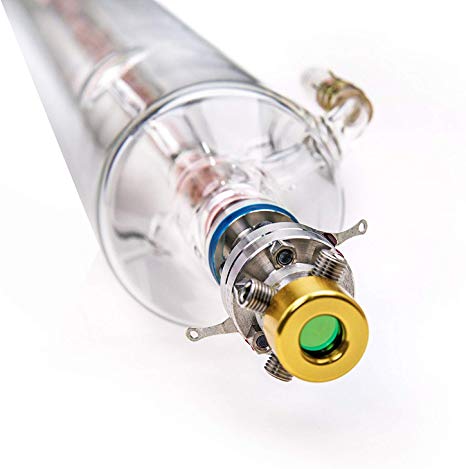

The LSR's CO2 laser tube needs to be water cooled via a closed circuit water cooling system.  This keeps both the power output stable and helps maintain the life of the tube.  For this reason we include our Industrial Active chiller for servicing laser tubes between 100W-150 watts.

Premium focal lens options from American Photonics. Made in the USA these meniscus focal lenses will enable high quality engraving and deeper cutting for your laser engraving or cutting application.  Unlike cheaper plano-convex lenses with a flat side our meniscus focal lenses yield a smaller focused spot with a 14% improved beam transmission to the material.

Versatile and adjustable T-Track material clamp down holds material to platform during milling.

Various laser to PC connectivity choices - USB, Ethernet, or WiFI (router included).

All-In-One laser head improves on the old side mounted probe with a new "All-In-One" built in Auto Focus function.  Now the head can automatically calibrate the distance between the material and laser for optimum focus.  Includes air-assist with air stream output for keeping the cutting or engraving area clean from debris and smoke.

ISO 9001 is the International Standard for a quality management system (“QMS”).  In order for our company to be third party certified to the ISO 9001 standard, we had to follow the requirements set forth within the Standard. ISO 9001 evaluates whether our QMS is first appropriate and effective, and then forces us to identify and implement improvements.

In short the standard demonstrates our ability to consistently provide products and services that meet customer and regulatory requirements and to demonstrate continuous improvement. The current version is ISO 9001:2015, which was published in September of 2015 (thus the: 2015).

Our In-House Tech Support team is here to serve and support from the day you receive your BOSS Laser and for as long as you own the machine.   Our tech support utilizes video, help manuals, phone, email, remote support via. Team Viewer, FaceTime, and even on-site support if necessary.   Need on-site installation and training for your team? Give us a call we're here to help!

Having supported thousands of businesses, hobbyists, educational, military, and Government institutions we know and understand how critical it is to be able to deliver competant and timely support.  Quality support begins with warehousing ALL parts to the machine you purchase - in our facilites.  That way if you have an issue with your laser cutter we can not only diagnose the problem we can also ship you the part you need same or next day.  This way you experience minimal down time.

Boss has improved its warranty!  We now warrant our laser systems to be free from defects in material and/or workmanship under normal use and service for a period of two (2) years from the date of purchase with exclusion of the laser tube which is warranted for one (1) year.

What about Boss' return policy?  You have thirty (30) full days to test drive your BOSS LASER machine for yourself.  Engrave, cut, and prove it for yourself!  We Guarantee a quality machine backed by quality support!  See details here:  BOSS Guarantee & Warantee Policy
